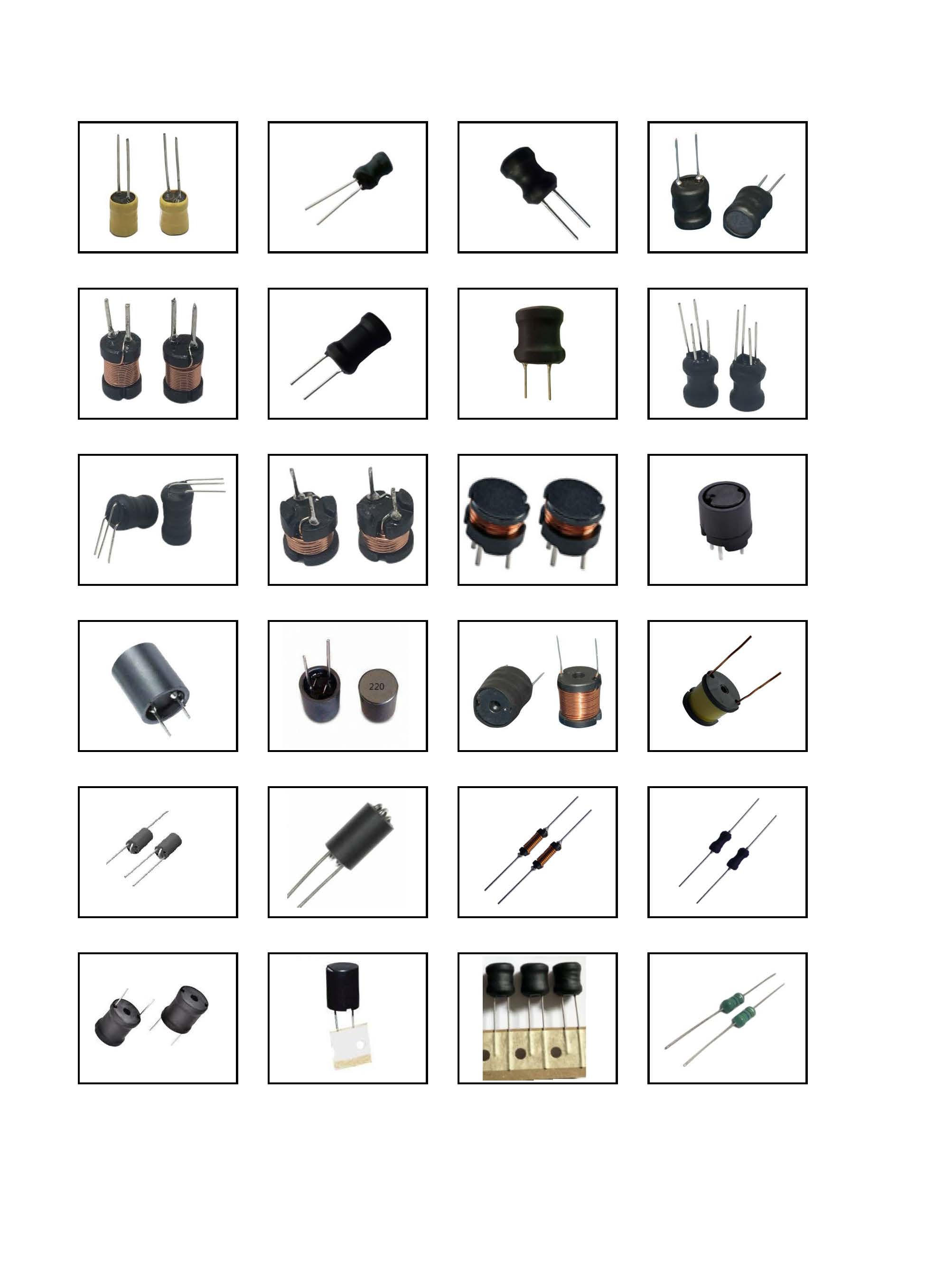

工字型電感CHOKE COILS
■ Applications:
Battery Charger, Radio,Electronic Toys, Monitor, Power Supplier, Satellite Receiver…
RADIAL CHOKE INDUCTORS
FEATURES
High-frequency ferrite
Low impedance
Large rated current
Automatic machinery production
APPLICATIONS
Power supplies
LED lamp
Network communications
Electronic toys, satellite receivers
DIMENSION LIST (UNIT: mm)
|
TYPE |
A (max) |
B (max) |
C ±0.5 |
D Max |
E ±0.05 |
|
DR34 |
4.0 |
6.0 |
1.3 |
15 |
0.5 |
|
DR45 |
5.0 |
7.0 |
2.0 |
15 |
0.6 |
|
DR57 |
7.0 |
8.5 |
2.5 |
15 |
0.6 |
|
DR65 |
6.8 |
7.5 |
3.0 |
15 |
0.6 |
|
DR65 |
7.5 |
10 |
3.0 |
15 |
0.6 |
|
DR77 |
8.0 |
9.0 |
4.5 |
15 |
0.6 |
|
DR0810 |
9.0 |
12 |
5 |
15 |
0.6 |
|
DR0911 |
10 |
13 |
5 |
15 |
0.8 |
|
DR0912 |
10 |
14 |
5 |
15 |
0.8 |
|
DR1010 |
11 |
12 |
6 |
15 |
0.8 |
|
DR1012 |
11 |
14 |
6 |
15 |
0.8 |
|
DR1016 |
11 |
18 |
6 |
15 |
0.8 |
